Gaia Ozone Generator

Effective and Environmentally Friendly



Ozone is one of the most powerful commercially available oxidants and is commonly used for municipal water and wastewater treatment.

Ozone is an unstable molecule; thus, Water ApS recommends that its generation should occur at the point of application. The length of tubing should be kept as short as possible to minimize ozone destruction within the residence time in the inlet tubing.

If several ozone treatments is needed at the same facility, we recommend that each treatment point should be supplied with ozone from an ozone system build adjacent to the point of treatment. This reduced ozone destruction by transport, and is also a safer option.

Many ozone generators on the market are huge systems, but our modular systems can be used to suit your needs and spread out the ozone production at your facility.

Safety, Effeciency, Stability

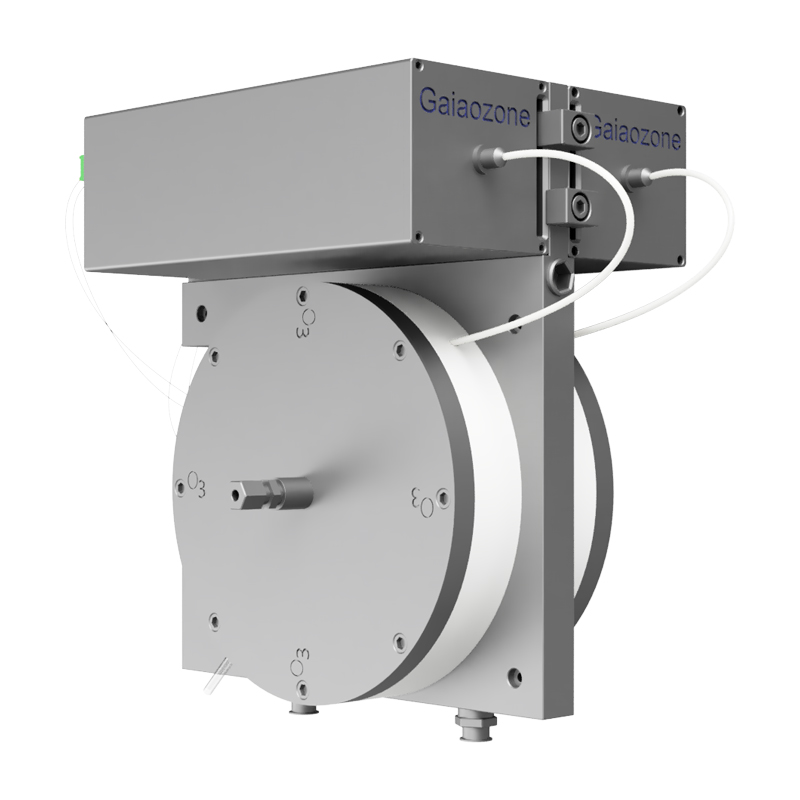

Modular Ozone Generator
Designed to be the first choice for any application



The Gaia ozone generator is designed based on patented technology which makes it stand out from the crowd for its efficiency, reliability, low energy consumption, and outstanding life cycle cost. On top of that, the Gaiaozone ozone generator is user-friendly and easy to operate.

Modular - combine single cells to produce the desired amount of ozone.

Most systems on the market has to be completely shut down during maintanance. Our modular design allows maintainance to be performed - while the system is still running.

Download Brochure
Cooling



A very important part of ozone generation is to keep the system cool.

Ensuring a stable low temperature does not only make the ozone generator more effective, the gas inside the generator will also be cooled down, making the ozone more stable for transportation to the point of application.

Larger Gaia modules is cooled down parrallelly with a cooling fluid temperature of maximum 15 °C with a minimum flow of 7 l/m to each generator.

Specifications



WG60

WG120

WG240

Ozone output







Gram per hour (g/h)

≤60

≤120

≤240

Concentration (% wt/wt)

10-20

10-20

10-20

Ozone concentraion (g/Nm3)

150-300

150-300

150-300









Operational conditions







Oxygen inlet (%)

90-98*

90-98*

90-98*

Oxygen dew point (°C)



-60



Oxygen inlet pressure (bar)

2-3

2-3

2-3

Oxygen inlet flow rate (L/min)

6

12

24

Oxygen Nm3/hour

0.360

0.720

1.440

Oxygen Kg/hour

0.5

1

2

Cooling fluid inlet temperature (°C)

<15

<15

<15

Cooling fluid flow (l/m, per generator)



7



Electricity requirement (V/Hz)



230 V ±3%, 50/60 Hz, Single Phase

Current requirement (A)

3.5

7.0

14.0

Maximum power consumption (W)

<600

<1200

<2400









Dimensions (cell)







Height (mm)

330

330

330

Width (mm)

300

300

300

Depth (mm)

120

216

450

Cooling liquid inlet/outlet (mm)

10/12

10/12

10/12

Oxygen inlet (mm)

4/6

4/6

4/6

Ozone outlet (mm)

4/6

4/6

4/6









Materials



Stainless Steel / Anodized Aluminum / PTFE / PFA









Weight (kg)

12

20

40

Download Full Specifications

Benefits of Ozone Water Treatment

Effectiveness

Instant neutralisation of biological matter such as bacteria, viruses and parasites. Ozone is effective over a wide range of pH.

Chemical Free

Ozone water treatment does not add chemicals to the water. No pollutants are created in the ozone water treatment process, and any wastewater produced is safe to enter waterways and drains.
