Effectiveness
Instant neutralisation of biological matter such as bacteria, viruses and parasites. Ozone is effective over a wide range of pH.
Gaiaozone

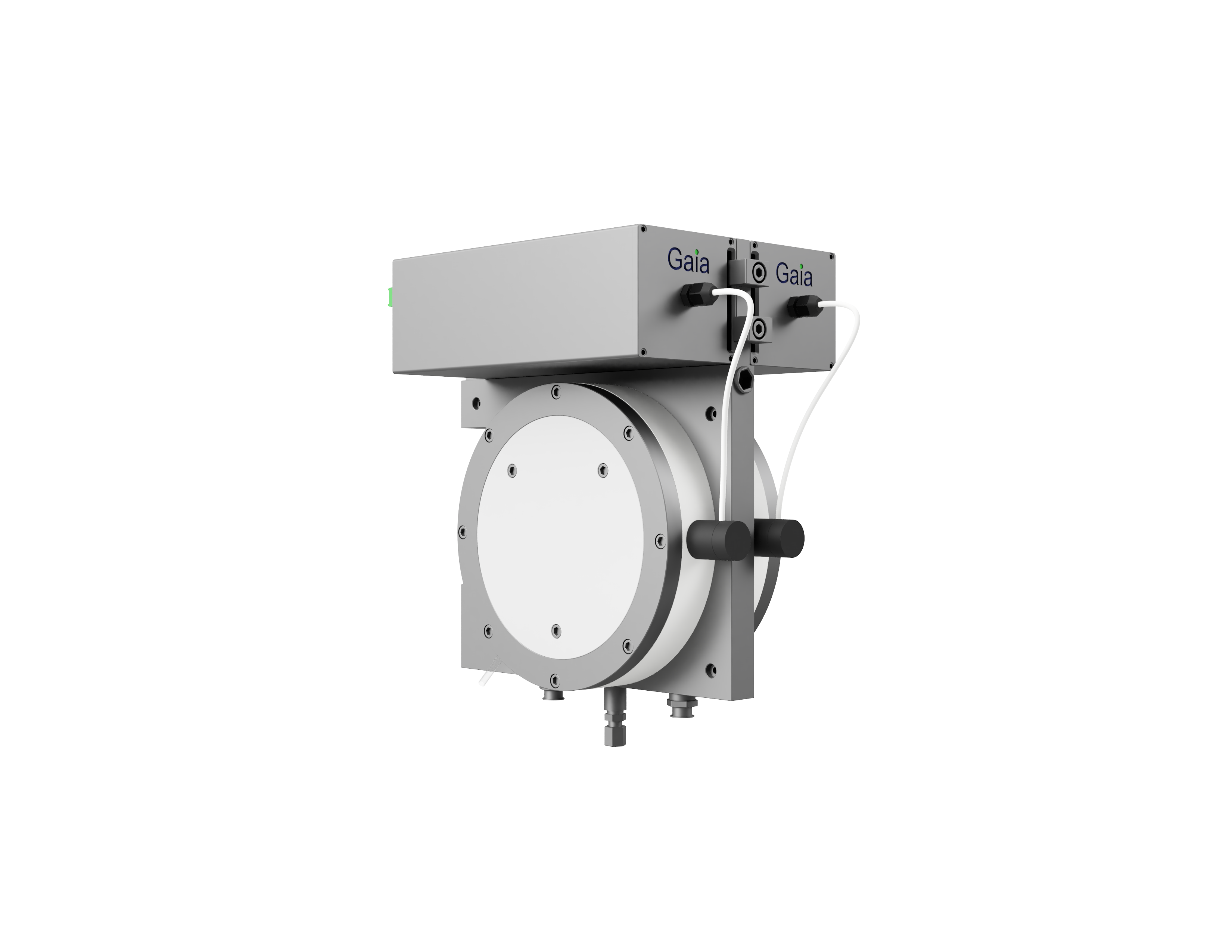

Modular Ozone Generator
Designed to be the first choice for any application
Gaiaozone ozone generator is designed based on patented technology which makes it stand out from the crowd for its efficiency, reliability, low energy consumption, and outstanding life cycle cost. On top of that, the Gaiaozone ozone generator is user-friendly and easy to operate.

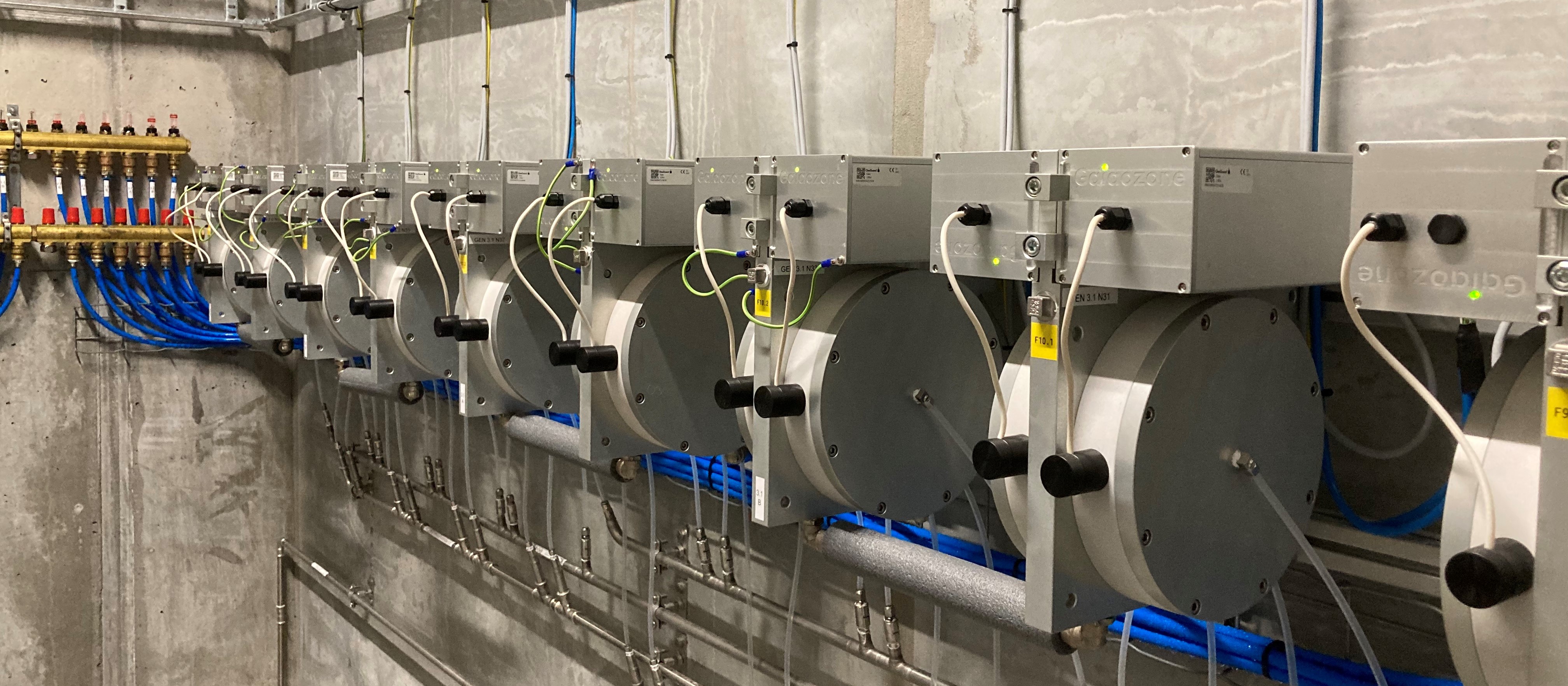

Modular - combine single cells to produce the desired amount of ozone.
Download Brochure
Specifications
|
|
WG60 |
WG120 |
WG240 |
|
Ozone output |
|
|
|
|
Gram per hour (g/h) |
60 |
120 |
240 |
|
Concentration (% wt/wt) |
10-20 |
10-20 |
10-20 |
|
Ozone concentraion (g/Nm3) |
150 |
150 |
150 |
|
|
|
|
|
|
Operational conditions |
|
|
|
|
Oxygen inlet (%) |
90-98 |
90-98 |
90-98 |
|
Oxygen inlet pressure (bar) |
2.5 |
2.5 |
2.5 |
|
Oxygen inlet flow rate (L/min) |
6 |
12 |
24 |
|
Oxygen Nm3/hour |
0.360 |
0.720 |
1.440 |
|
Oxygen Kg/hour |
0.5 |
1 |
2 |
|
Temperature range of outlet cooling (°C) |
<10 |
<10 |
<10 |
|
Electricity requirement (V/Hz) |
230 V ±3%, 50/60 Hz, Single Phase |
||
|
Current requirement (A) |
3.5 |
7.0 |
14.0 |
|
Maximum power consumption (W) |
600 |
1200 |
2400 |
|
|
|
|
|
|
Dimensions (cell) |
|
|
|
|
Height (mm) |
330 |
330 |
330 |
|
Width (mm) |
300 |
300 |
300 |
|
Depth (mm) |
120 |
216 |
450 |
|
Cooling liquid inlet/outlet (mm) |
10/12 |
10/12 |
10/12 |
|
Oxygen inlet (mm) |
4/6 |
4/6 |
4/6 |
|
Ozone outlet (mm) |
4/6 |
4/6 |
4/6 |
|
|
|
|
|
|
Materials |
Stainless Steel / Anodized Aluminum / PTFE / PFA |
||
|
|
|
|
|
|
Weight (kg) |
12 |
20 |
40 |
Download Full Specifications
Benefits of Ozone Water Treatment
Chemical Free
Ozone water treatment does not add chemicals to the water. No pollutants are created in the ozone water treatment process, and any wastewater produced is safe to enter waterways and drains.
